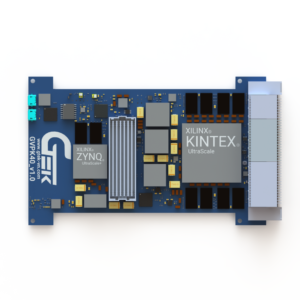

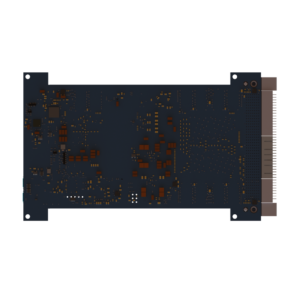

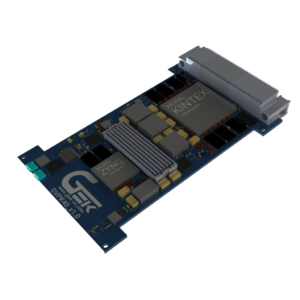

VPX Processing: GVPK40 – Kintex Ultrascale 3U

3U Processing Board Features:

• Dual FPGA architecture
  • Kintex Ultrascale
  • Zynq Ultrascale+ MPSoC
• 8GB DDR4 mapped to FPGA
• 2GB DDR4 mapped to Zynq
• VITA 57.4 HSPC FMC+ site interfacing with the Ultrascale FPGA
• Convection cooled
• Up to two COM ports from the Zynq to the backplane
• 1 GB Ethernet PHY to Backplane
• Front Panel USB UART
• SATA 3.0, Display Port to Backplane RTM
• VPX Backplane GPIO
• I2C Interface P0 to Zynq
• Operating system support
  • Linux®
  • Windows®
  • VxWorks® (consult factory)
• Full-featured Board Support Package (BSP)
  • Open VHDL reference design
  • Open C/C++
  • PCIe™ core included with BSP
• Supported OpenVPX slot profiles
  • SLT3-PAY-2F1F2U-14.2.1
  • SLT3-PAY-1F2F2U-14.2.2
  • SLT3-PAY-2F2U-14.2.3
  • SLT3-PAY-1F1F2U-14.2.4
  • SLT3-PAY-1D-14.2.6
  • SLT3-PAY-2F-14.2.7
  • SLT3-PAY-1F4U-14.2.8

• General Features:
