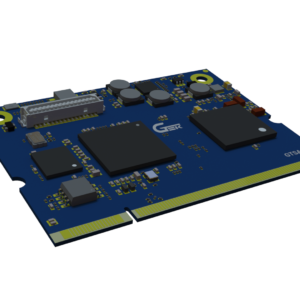

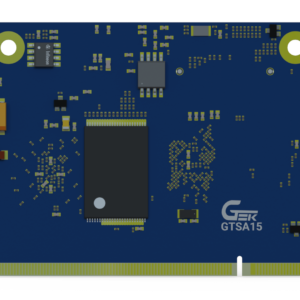

SoM GTSA15 – TI OMAP-L138 and Xilinx Artix-7

GTSA15^®

TI OMAP-L138 Dual Core Application Processor
- 456 MHz (Max) C674x VLIW DSP
- 456 MHz (Max) ARM926EJ-S MPU
On-Board Xilinx Artix-7 Up to XC7A50T FPGA
Up to 256 MB mDDR2 CPU RAM, Up to 512 MB Parallel NAND FLASH, Up to 16 MB SPI based NOR FLASH
Integrated Power Management
Rapid Development / Deployment
Multiple Connectivity and Interface Options
Rich User Interfaces
Industrial grade availability
10+ Years Longevity

CONTACT SALE

Design Support

3D Step
Software - BSP
Software - User Manual

BUY NOW

SPECIFICATION

On Module Feature:

The GTSA15 is a highly configurable, very small form-factor processor card that features a Texas Instruments OMAP-L138 456 MHz (max) Applications Processor (OMAP) tightly integrated with the Xilinx Artix-7 Field Programmable Gate Array (FPGA), FLASH (NAND/NOR) and mDDR2 memory subsystems. The GTSA15 provides a complete and flexible digital processing infrastructure for the most demanding embedded applications development.

APPLICATIONS: Embedded Instrumentation, Industrial Automation, Embedded Control Processing, Network Enabled Data Acquisition, Test and Measurement, Software Defined Radio

Board-to-Board Connectors Interfaces:

96 FPGA User I/O Pins
10/100 EMAC MII / MDIO
2 UARTs
2 McBSPs
2 USB Ports
Video Output
Camera/Video Input
MMC/SD
SATA Support (option)
Single 3.3V Power Supply

OS Support:

Linux
QNX 6.4
Windows Embedded CE Ready
ThreadX Real Time OS

General Features:

Power Input	3.3V through SODIMM Connector
Form Factor	SO-DIMM
Operating Temperature	-40°C to +85°C (Industrial)
Environment Specification	RoHS & REACH Compliant
Compliance	CE*

THERMAL SOLUTIONS

For any highly integrated System On Modules, thermal design is very important factor. iWave Supports Heat Sink and Fan Sink Solution for TI OMAP-L138 and Xilinx Artix-7 SOM.
