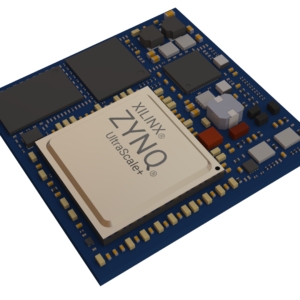

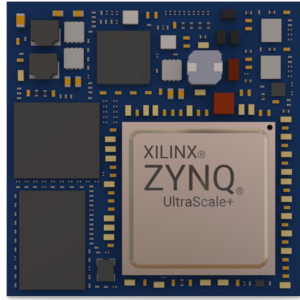

SoM GTDZ23 – ZU5-ZU1 Zynq UltraScale+ Solderable

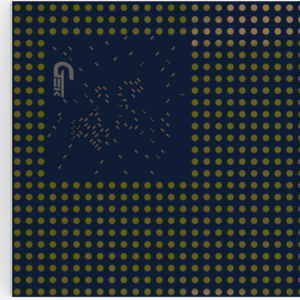

Solderable PAD:

From PS Block

• PS-GTR High-Speed Transceivers (up to 6Gbps) x 2
• Gigabit Ethernet x 1
• USB2.0 OTG x 1
• RGMII Interface or ULPI Interface x 1
• SD (4bit) x 1
• SPI x 1
• CAN x 2
• Debug UART x 1
• Data UART x 1
• I2C x 2
• PS JTAG

From PL Block

• PL-GTH High-Speed Transceivers (up to 6Gbps) x 04
• PL IOs – 156 IOs

• • HD Bank IOs – Up to 36 LVDS IOs/72 Single-ended (SE)
  • HP Bank IOs – Up to 72 LVDS IOs/144 Single-ended (SE)
  • GC Global Clock Input pins – Up to 15 LVDS/SE
  • ADC Input pins – Up to 16 Differential/Single Ended
